AIR CLASSIFIER AVAC SERIES
Air Classifier offers the most efficient dry – classifying solution to remove fines from natural sand or crushed sand. It combines gravitational, inertial, centrifugal and aerodynamic forces to efficiently classify materials to increase productivity.

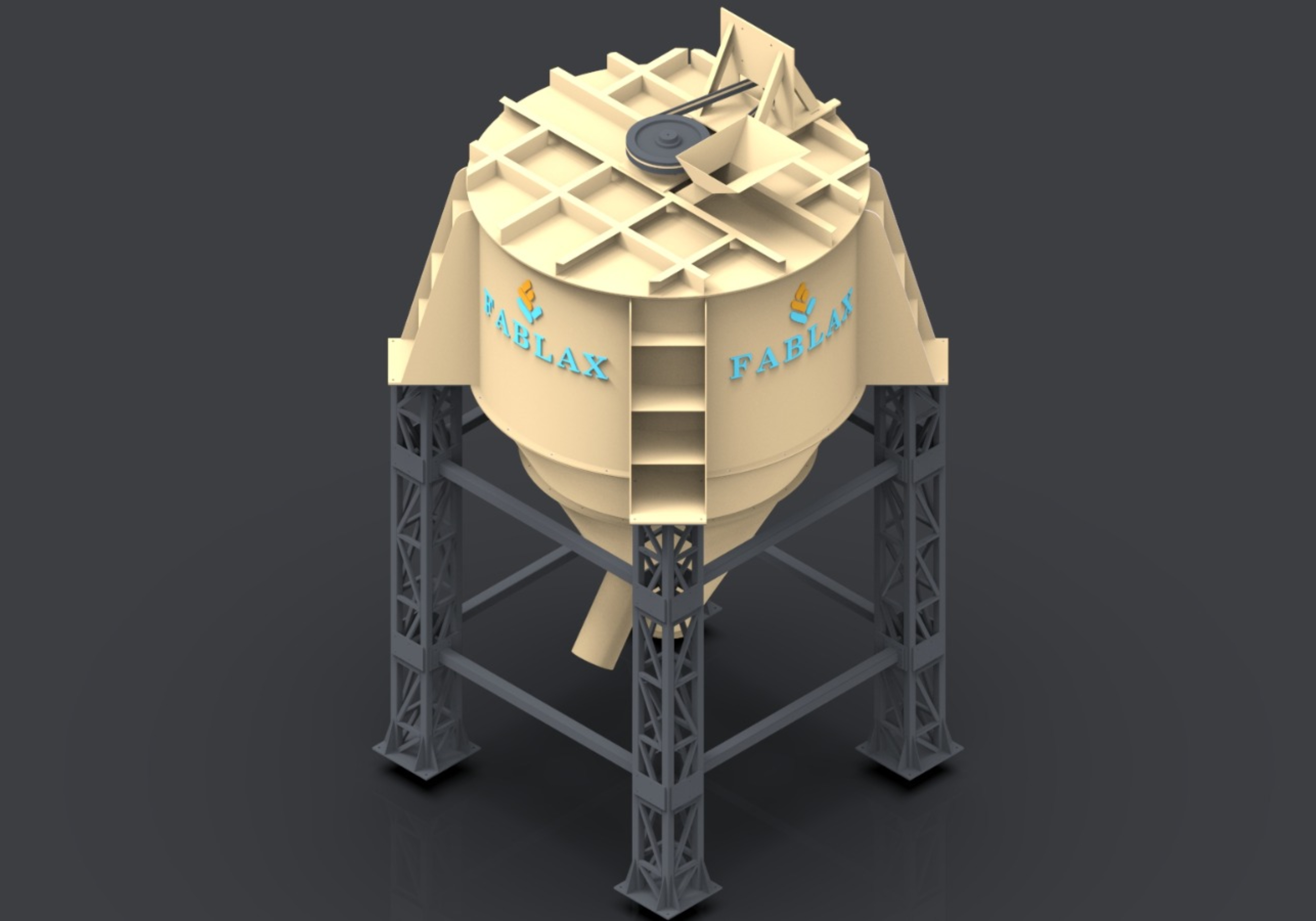

Fab-3000 Model
HIGHLIGHTS

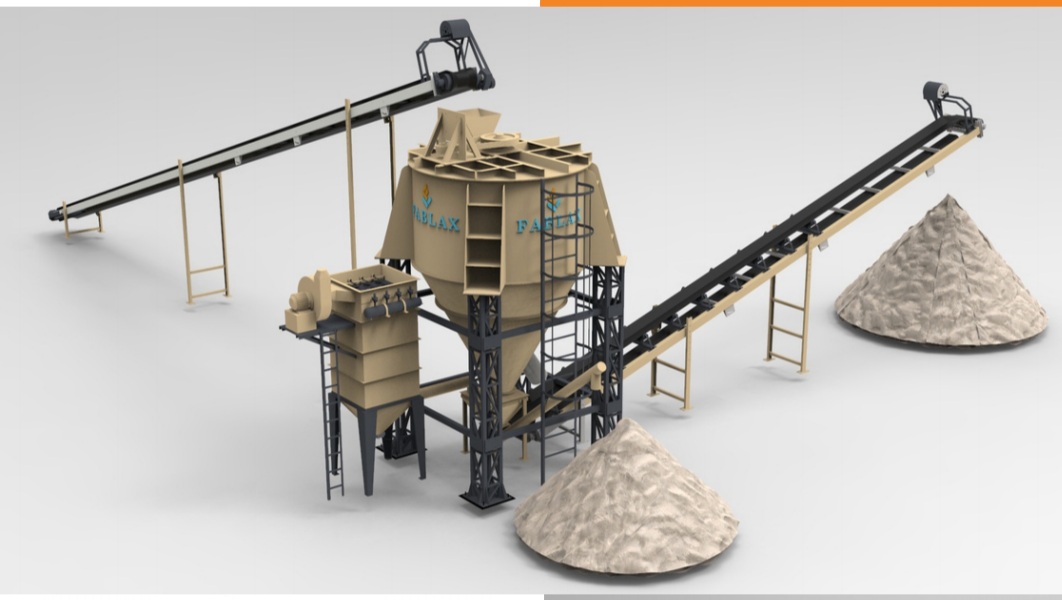

Stand – alone modular units to integrate with existing plants.
Air Classifier produces high quality sand for all range of applications including concrete manufacture (M-Sand).
Air Classifier is eco-friendly and removes fines without using a single drop of water.
The parts of the equipment which are exposed to sand surfaces are covered with wear liners.
Product of 100 micron or smaller blind particles can be classified without screen.
Technical Data
| DESCRIPTION | UNIT | FAB-AC-100 | FAB-AC-150 |
|---|---|---|---|
| Diameter | mm | 3100 | 3800 |
| (inch) | (122.0) | (149.6) | |
| Feed Size (Max.) | mm | 6 | 6 |
| (inch) | (0.2) | (0.2) | |
| *Capacity | TPH | 60 - 70 | 90 - 120 |
| Air Flow | cfm | 200 - 400 | 300 - 600 |
| Moisture (Max.) | % | 2 | 2 |
| Motor Power | kW | 30 | 45 |
| (hp) | (40) | (60) | |
| Weight | kg | 10500 | 13500 |
| (Ton) | (10.5) | (13.5) |
